MAXHUB Interactive Flat Panel U4 Series Datasheet

The MAXHUB Interactive Flat Panel U4 Series Datasheet outlines a high-performance 4K smart display designed for modern classrooms and corporate boardrooms. Key Display & Performance Specifications • Resolution: 4K UHD (3840 × 2160) • Panel Brightness: 500 nits (max.) • Color Accuracy: 1.07B colors (10-bit), 98% sRGB, Δ E ≤ 1 • Operating System: Android 15.0 with Google EDLA Certification • Processor & Memory: Octa-core CPU (A76 × 4 + A55 × 4 at 2.4GHz), Mali-G610 MP4 GPU, 6 TOPS NPU, paired with 16GB RAM and 256GB ROM Touch System • Touch Technology: Infrared recognition • Touch Points: 50-point touch (75-inch model) • Accuracy: ± 0.5 mm • Response Time: ≤ 2.5 ms • Writing Height: ≤ 1 mm • Special Features: MAXHUB Think&Direct Annotation, palm rejection, sharp erase, erase-and-write simultaneously, single pen dual-color system Camera & Audio • Camera: 50MP built-in camera with 115° DFOV, auto framing, speaker tracking, and facial recognition • Microphone: 8-microphone array with 0–12 m pickup range and AI noise cancellation • Speakers: SkyWave Sound System (2.2 channel configuration) Connectivity & Ports • HDMI Input: 4x HDMI IN (Up to 4K@60Hz, HDCP 1.4/2.2/2.3, CEC, ARC on HDMI 1) • HDMI Output: 1x HDMI OUT (Up to 4K@60Hz) • USB Ports: 1x USB 2.0 (for system upgrades), 4x USB 3.0 (2 front, 2 rear) • USB Type-C: 2x USB Type-C (Video/audio, touch, charging up to 65W/100W PD, LAN network sharing) • Other Inputs/Outputs: DisplayPort IN, 3.5mm Audio IN/OUT, RS232, RJ45 IN/OUT (10/100/1000Mbps), TF Card port (expandable up to 1TB), and SPDIF

In stock

No online payment — a sales rep confirms everything on WhatsApp.

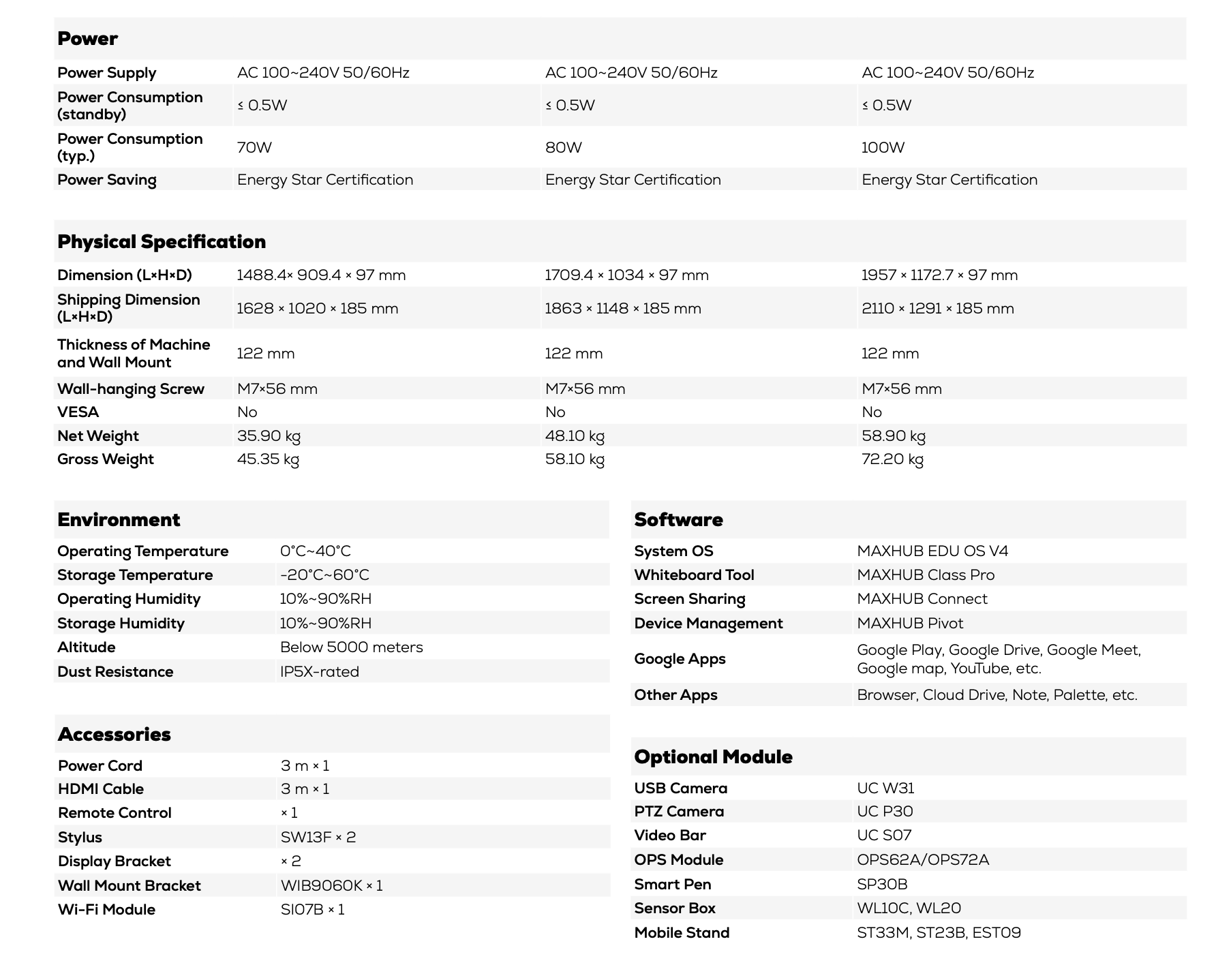

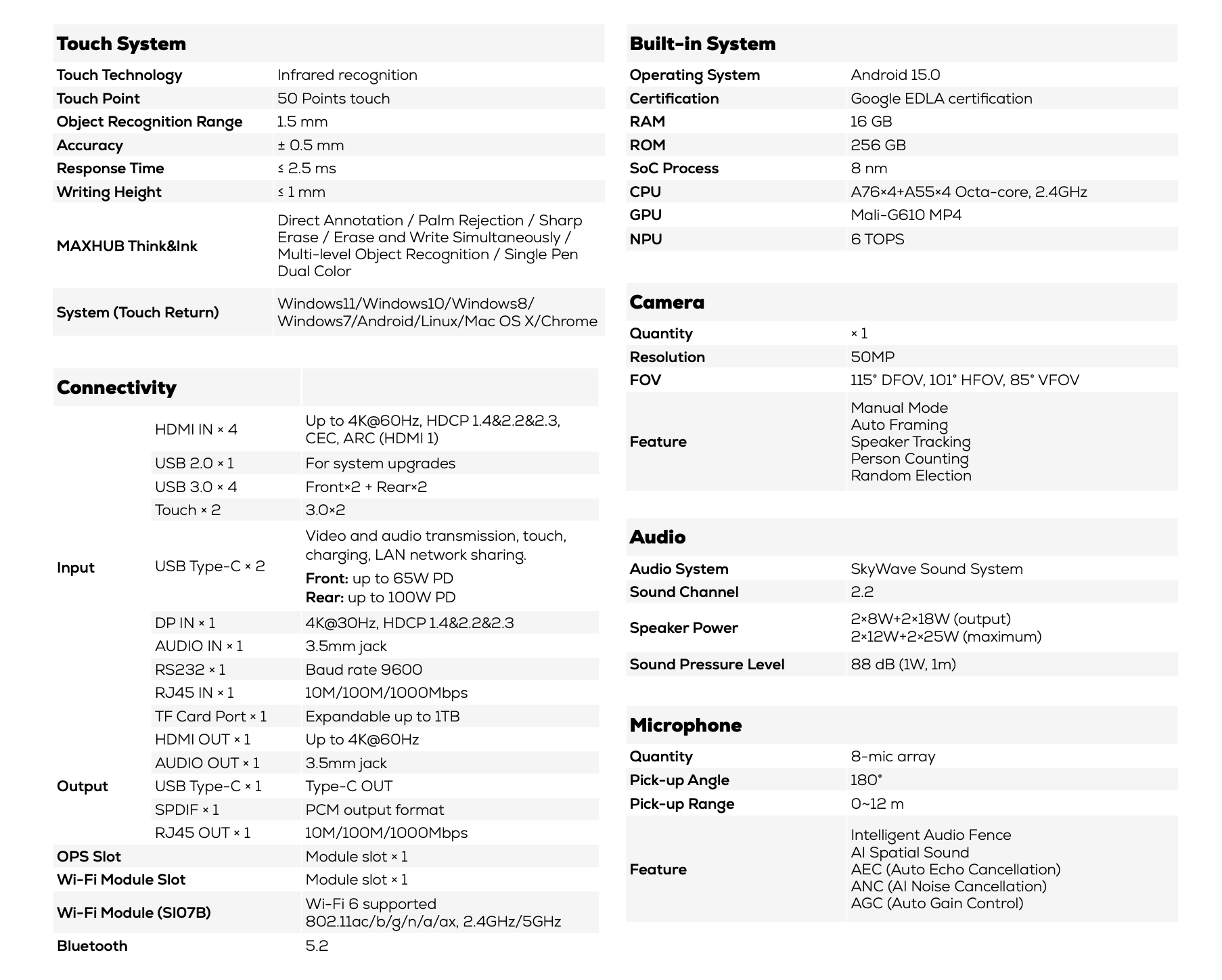

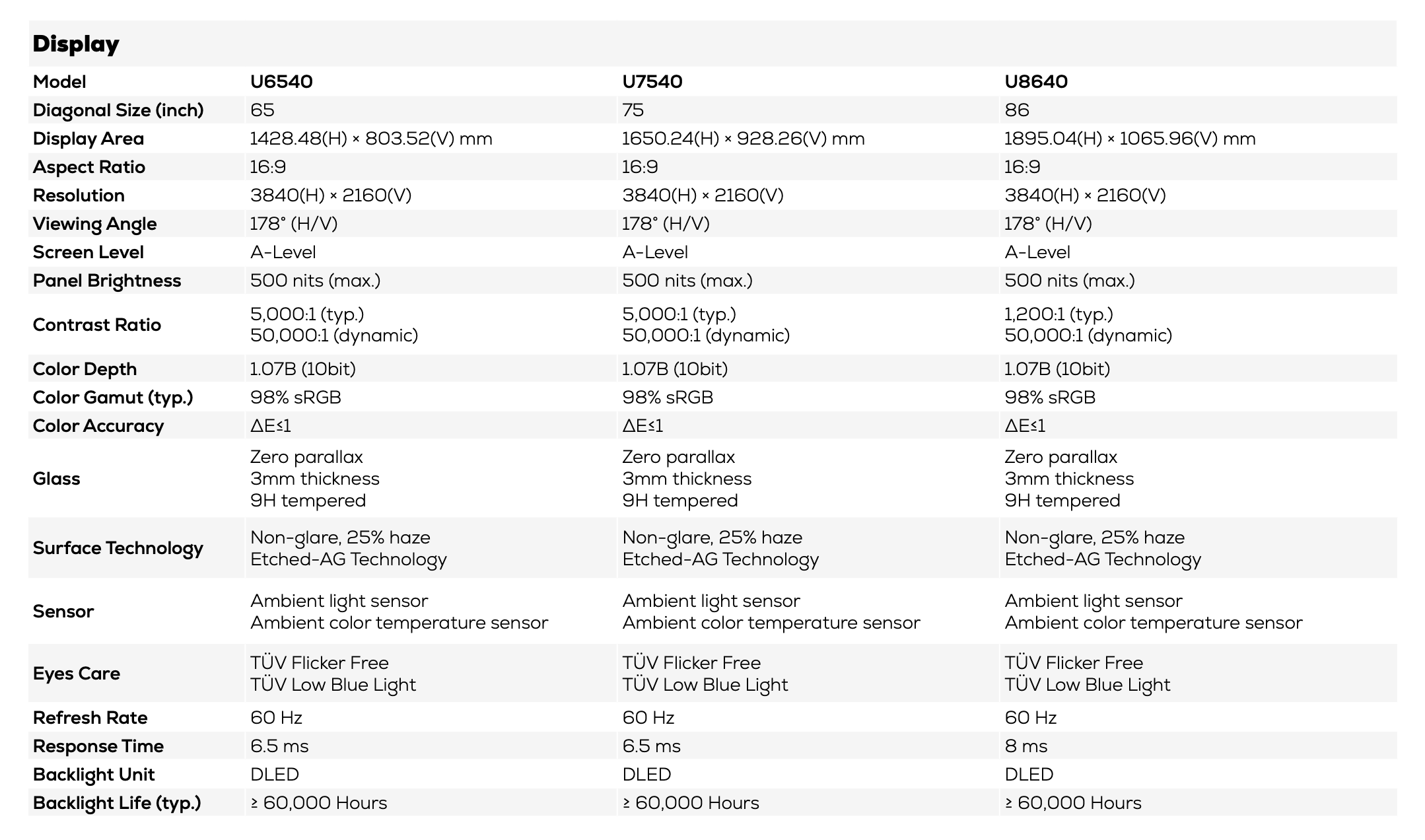

Specifications

Technical details can vary by region and revision. Confirm critical requirements with our team and compare the manufacturer’s current catalog.
