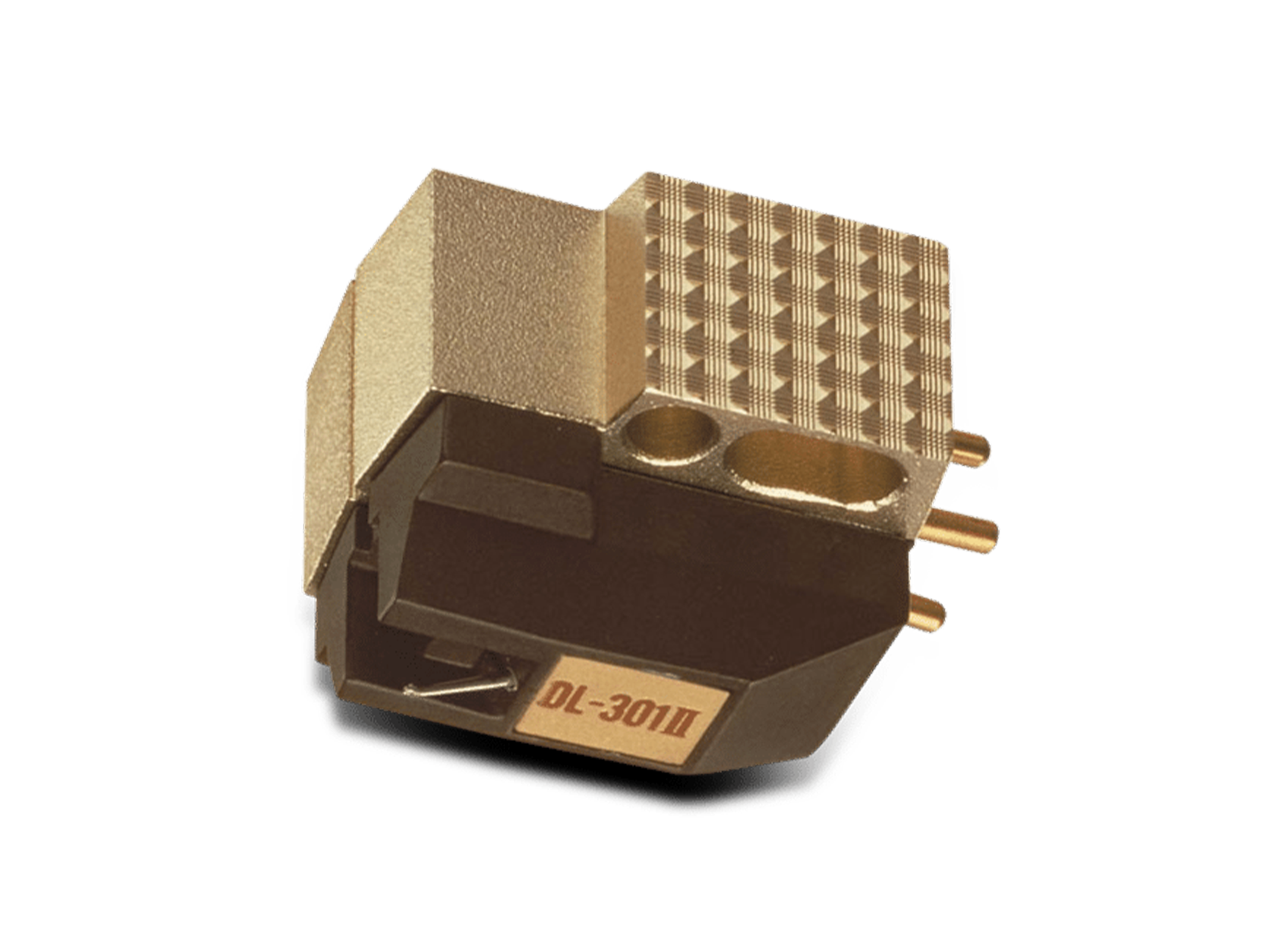

Denon DL-301 Mk II Moving Coil Cartridge

Denon DL-301 Mk II Moving Coil Cartridge

The Denon DL-301 MK II is a high-performance moving coil (MC) phono cartridge designed for audiophile vinyl playback. Key Specifications • Cartridge Type: Moving Coil (MC) • Output Voltage: 0.4 mV • Frequency Range / Response: 20 Hz to 60,000 Hz • Output Impedance: 33 ohms • Stylus Tip: Special elliptical solid nude diamond (0.07 x 0.14 mm rectangular cross-section) • Tracking Force: 1.2 g to 1.6 g (recommended 1.4 g ± 0.2 g) • Compliance: 13 x 10⁻⁶ cm/dyne (well-suited for low-to-medium mass tonearms) • Channel Separation: Greater than 28 dB at 1 kHz • Channel Balance: Less than 1 dB at 1 kHz • Cartridge Weight: 6.0 g Design and Features • Rigid Metal Body: Uses a gold-finished metal housing modeled on the original DL-301 to minimize resonance and color. • Tapered Aluminum Alloy Cantilever: Features a lightweight, double-layer tapered cantilever design for rapid transient response and low-frequency control. • Cruciform Armature & Damping System: Integrates Denon’s 2-way damping system to keep frequency characteristics stable across room temperature changes. • Compatibility: Requires a moving-coil (MC) capable phono stage or step-up transformer (recommended load impedance over 100 ohms)

In stock

No online payment — a sales rep confirms everything on WhatsApp.

Specifications

Technical details can vary by region and revision. Confirm critical requirements with our team and compare the manufacturer’s current catalog.
